2.5" BDS Lift Kit | 2019-2024 GMC Sierra 1500 AT4 & Chevy Silverado 1500 Trailboss GAS | 2.0 Rears

🔧 BDS 2.5” Coil-Over Suspension Lift Kit with FOX Performance Elite Shocks

For 2019–2024 Chevy Trail Boss & GMC AT4 1500

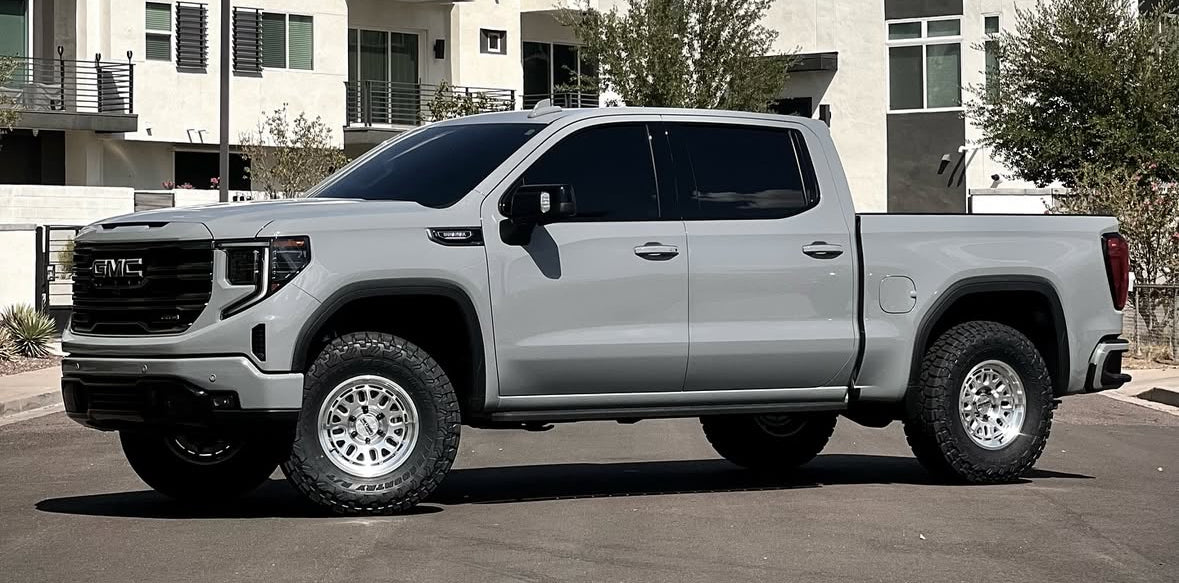

Give your Trail Boss or AT4 1500 a true performance makeover with this 2.5-inch lift kit featuring FOX Performance Elite 2.5 coil-overs from BDS Suspension. While it’s called a 2.5” kit, actual ride height is closer to 4.5” with the coil-overs installed—giving you the extra clearance and aggressive stance your truck was built for.

This high-clearance system improves ground clearance, articulation, and suspension geometry while soaking up terrain with race-proven FOX shock technology.

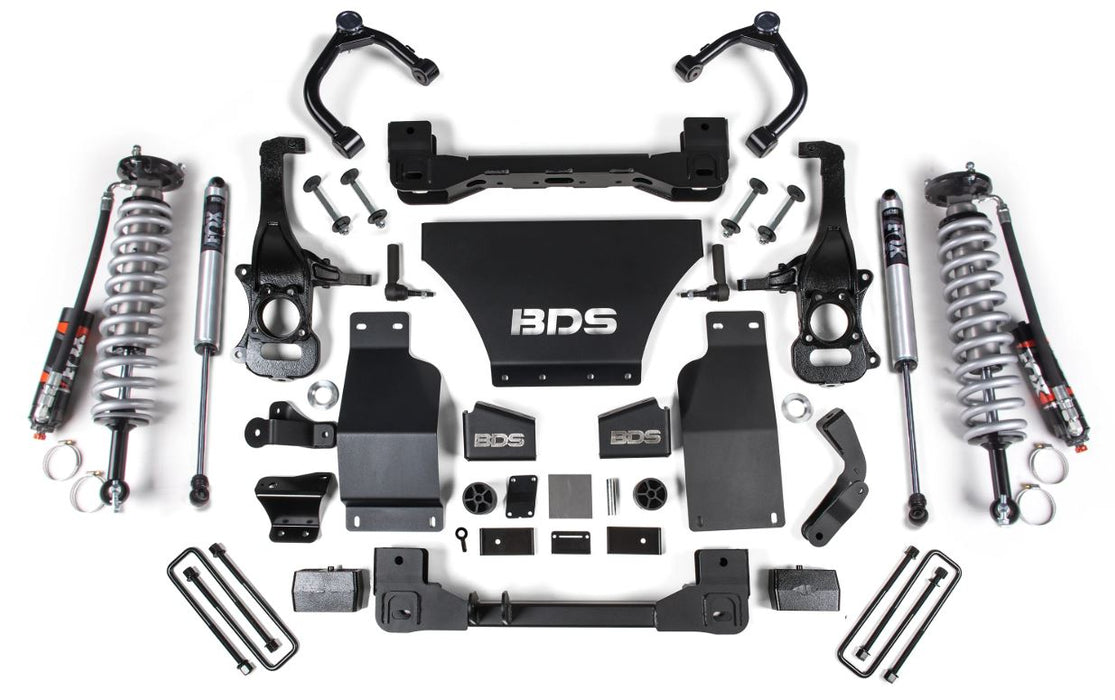

📦 What's Included:

🛠 Front End:

• FOX 2.5 Performance Elite Coilovers w/ DSC Adjusters

• HD Tubular Upper Control Arms with indexed ball joint cups

• 1/4" thick laser-cut steel crossmembers

• Torsion bar relocation brackets

• Multi-piece differential relocation brackets

• Heavy-duty front skid plate

• CNC-Machined Ductile Iron Steering Knuckles

• Sway bar drops, CV spacers, tie rod ends, bump stop extensions

• All necessary hardware and brake line brackets

🛠 Rear End:

• HD Replacement Lift Block + new u-bolts

• Brake line relocation brackets

• FOX 2.0 Performance Series or 2.5 Performance Elite rear shocks

🦊 FOX 2.5 Performance Elite Coil-Overs (Front)

• 2.5" extruded aluminum body for heat dissipation

• Remote reservoir for increased fluid capacity

• DSC adjusters: 10 low-speed + 12 high-speed compression settings

• Performance-tuned valving for road and trail abuse

• Built to handle aggressive off-roading while preserving ride quality

🛠 Rear Shock Options:

📐 Recommended Tires & Wheels:

• 33x12.5 w/ 17x9 @ 4.5" backspacing

• 33x12.5 w/ 20x9 @ 5" backspacing

• 35x12.5 w/ 20x9 @ 6.25" backspacing

(Trimming may be required based on tire brand and wheel offset)

⚠️ Important Fitment Notes:

• ✅ Requires frame bracket modification

• 📏 Actual lift height with coilovers is approx. 4.5”

• ❌ Factory 17–18” wheels cannot be reinstalled due to tie rod end clearance

• ⚠️ Factory 20” wheels can be reused

• 🛞 17” wheels with 4.5” backspacing must be test fit before mounting tires

• 🔍 All aftermarket wheels should be test fit prior to mounting tires to verify brake caliper clearance

• 🛠 If equipped with mono-leaf rear spring, use part #UBT4064

• ⚙️ 2.7L Turbo models should use the Diesel kit for proper skid plate fitment

✅ Key Benefits:

• Factory Protection Plus warranty included

• High-strength components designed for aggressive use

• Corrected steering/suspension geometry = better handling

• ESC system and Blue Cruise compatible

• Maintains ride quality while giving your truck a serious performance and visual upgrade

💯 Not Just a Lift — A Full Suspension Overhaul

The BDS 2.5” (true 4.5") Performance Elite system with FOX’s DSC-equipped shocks gives your truck the confidence to handle rugged terrain, look great on the road, and drive like a dream. From daily use to trail thrashing, it’s ready for anything.
