BDS 3” Coilover Conversion Lift Kit with FOX 2.5 Shocks | Fits 2011–2019 Chevy Silverado & GMC Sierra 2500HD

Transform your GM HD truck into a trail-dominating machine with unmatched ride quality and performance.

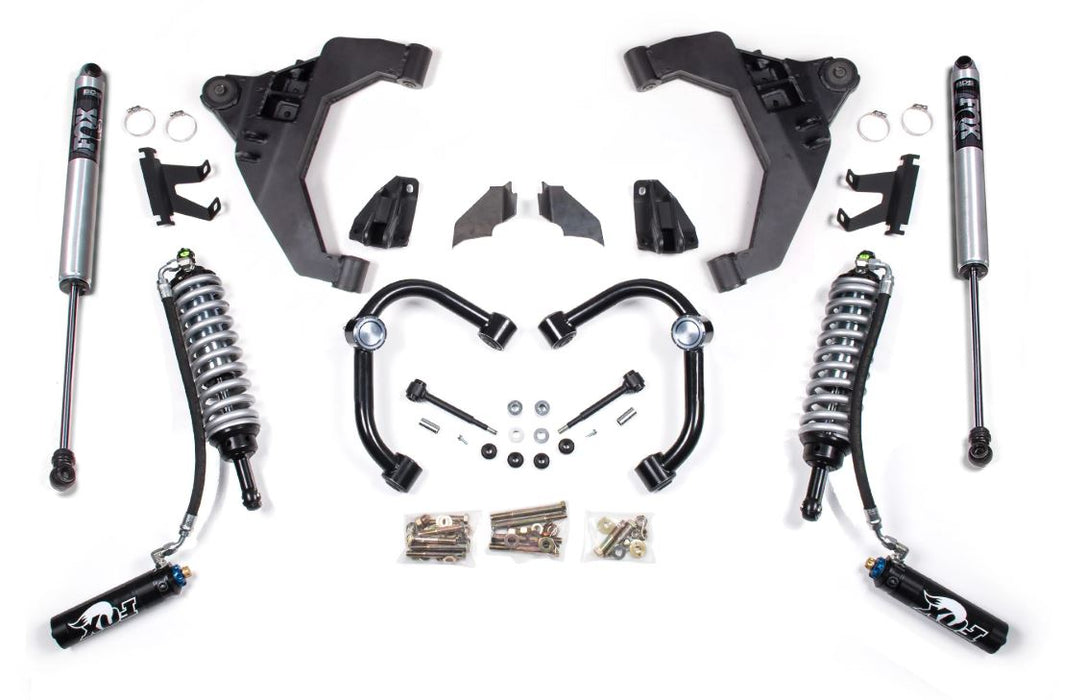

Engineered to be the ultimate suspension upgrade, the BDS 3-inch Coilover Conversion Lift Kit with FOX 2.5 Reservoir Shocks brings precision handling, serious strength, and aggressive styling to your 2011–2019 Chevy Silverado 2500HD or GMC Sierra 2500HD. Say goodbye to factory torsion bars and hello to a complete coilover system built for the most demanding conditions—on or off the road.

🔧 Premium Coilover Performance with FOX 2.5 Technology

This high-end kit features bolt-on FOX 2.5 factory race series coilovers with remote reservoirs for increased oil capacity and cooler operating temperatures. These coilovers are tuned out of the box for diesel engine applications and come with an optional DSC (Dual Speed Compression) adjuster, giving you full control over high- and low-speed compression damping with a simple twist of a knob.

💪 Heavy-Duty Upper & Lower Control Arms

Upgraded control arms make this more than just a lift—it’s a performance overhaul:

• Upper Control Arms: Fabricated from 1.5” OD x .120-wall tubular steel with indexed ball joint cups for corrected geometry and improved down travel.

• Lower Control Arms: Fully boxed and gusseted for maximum durability in extreme conditions.

• Maintenance-Free Bushings: Durometer-specific rubber bushings and greaseable ball joints ensure quiet operation and extended longevity.

🛠 Comprehensive Front-End Geometry Correction

The BDS coilover system includes everything you need to maintain factory-aligned steering and driveline angles:

• Multi-piece differential relocation brackets

• Upgraded sway bar links

• Heavy-duty hardware and crossmembers

• Custom u-bolt flip kit for added rear ground clearance

🚗 Rear Lift + FOX 2.0 Performance Shocks

In the rear, the factory blocks are replaced with taller lift blocks and upgraded FOX 2.0 IFP (Internal Floating Piston) shocks, delivering maximum travel and improved off-road response.

✅ Kit Features at a Glance

• 3” suspension lift for improved ground clearance

• FOX 2.5 Factory Series Coilovers with Remote Reservoirs

• Optional DSC Adjuster for on-the-fly shock tuning

• Heavy-duty tubular and boxed control arms

• Factory Protection Plus: BDS’s drivetrain warranty

• Maintains excellent on-road handling and off-road capability

• Clears up to 35" tires

🛞 Tire & Wheel Fitment Guide

• 33x12.5 on 17x9 wheels with 4.5” backspacing

• 35x12.5 on 20x9 wheels with 5.0” backspacing

Note: Minor metal trimming may be required with 35x12.50R20 on 20x9 wheels w/ 5.0–5.5” BS

⚠️ Important Fitment Notes

• Fits 2011–2019 Chevy Silverado 2500HD / GMC Sierra 2500HD (Diesel models only)

• Does NOT fit gas engine models – coilovers are preset for diesel and will result in excessive lift on gas trucks

• Factory 17", 18", and 20" wheels cannot be reused

• Dually trucks require aftermarket 20" wheels and max tire size of 285/60R20

• Minor welding required during installation

• Determine if your truck has top-mounted overload springs before choosing rear lift option

• Coilovers are preset to provide minimum of 2" lift height

• Requires aftermarket wheels with correct clearance due to steering knuckle/tie rod interference

💯 Why BDS?

Backed by a commitment to quality and real-world performance, BDS Suspension delivers one of the most complete coilover conversions available for GM HD trucks. With race-proven FOX technology, full geometry correction, and rugged construction, this lift kit is the ideal upgrade for daily driving, weekend towing, or serious off-roading.

🛒 Add to cart now and unleash the full capability of your 2500HD with BDS and FOX performance engineering. Drive taller. Ride smoother. Perform better.
